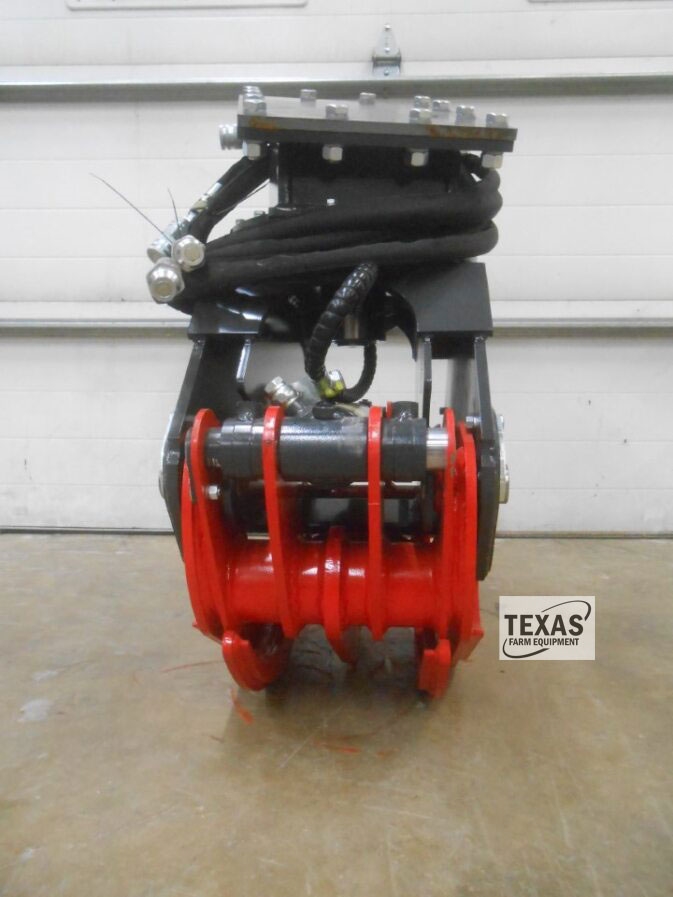

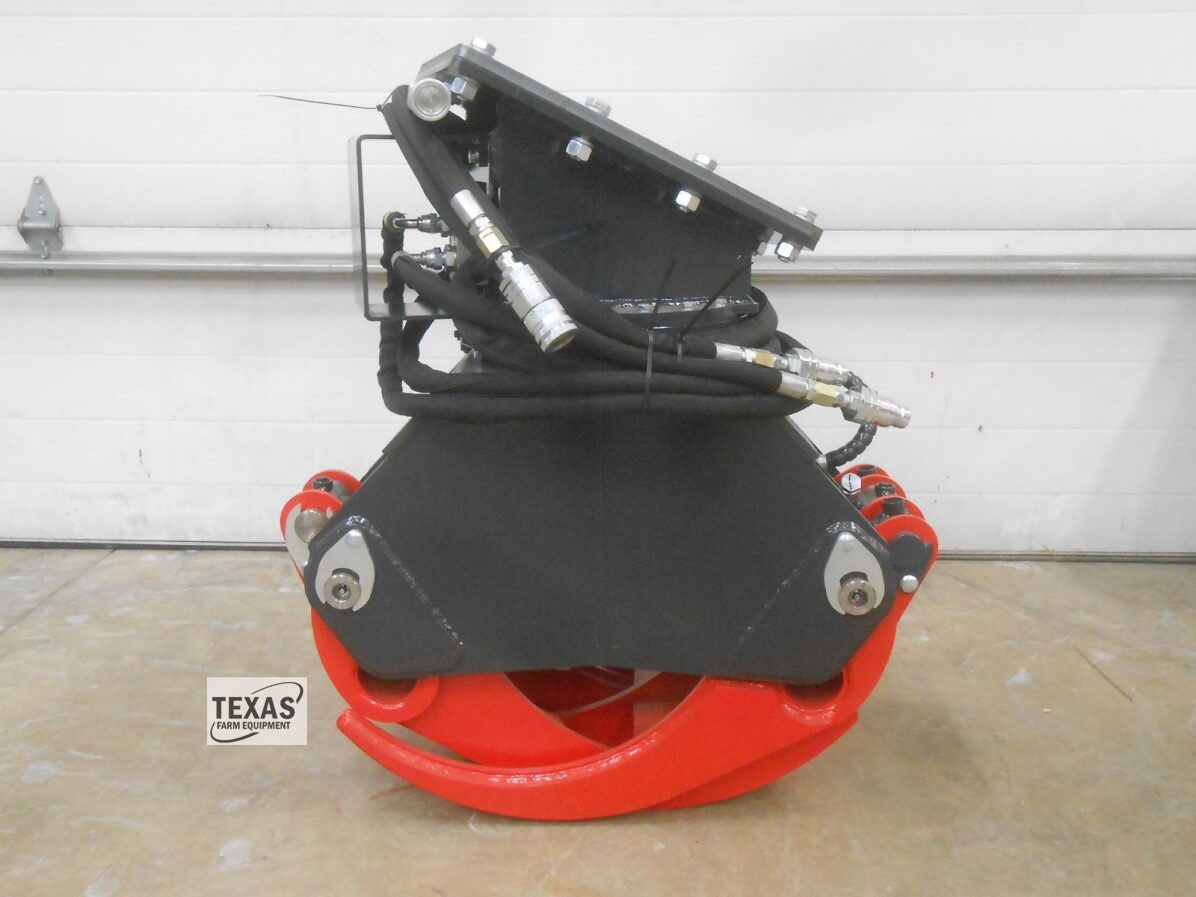

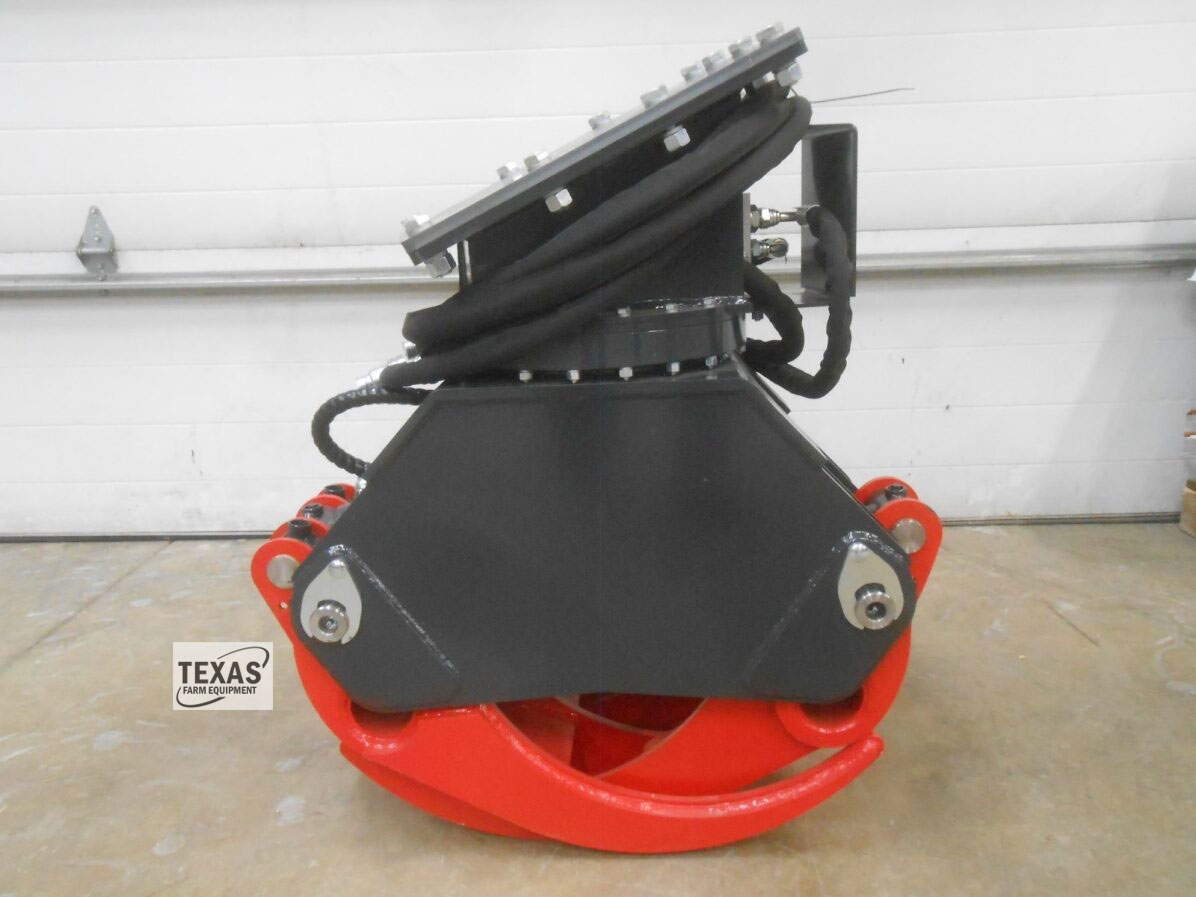

IFE 5T55, 55" 5-Tine Bypass Log Grapple, Scrap & Stone Grapple & Rigid Rotator

Alternative Views:

Our Price: $8,999.00

Availability:: Usually Ships in 6 to 8 Weeks
Product Code: 5T55-GRAPPLE-ROTATOR

Qty:

DESCRIPTION:

IFE 5T55 SEVERE DUTY, Universal 55" Pinching Or Bypass 5-Tine Log & Stone Grapple with Rigid Slewing Ring Rotator: Suitable For Brush, Logs, Scrap, Stone, RR Ties, Waste - Most Anything!

Texas Farm Equipment:
Excellent Quality Equipment, The Best Features, Best Single Pass Results & Best Prices!
Supported By A Full-Service Dealership!

'SLEW RING' RIGID ROTATOR WITH FLAT PLATE COUPLER:

Rotator Turns 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
Maximum Static Load: 15,400lb's.
Maximum Dynamic Load: 5,500lb's.
Max Working Pressure: 3629PSI.
Thread is JIC 7/8".
Rotator Weight: 125lb's.
This Listing is For The Grapple & Rotator Only - All Other Machines Are For Reference Only!
Specifications are based on manufacturer provided data & subject to change.

GRAPPLE SPECIFICATIONS:

Maximum Opening: 55".
Minimum Opening: 4-3/4".
Maximum Lift Capacity: 5,500lb's.
Height (grade to top of Grapple) in Open Position: 20".

Add 10" For Height of Rotator.

Height (grade to top of Grapple) in Closed Position: 14".
Overall Width of Claw: 14".
Maximum Working Pressure: 3625psi.
Grapple Weight: 450lb's.
Specifications are based on manufacturer provided data & subject to change.

FREE SHIPPING DETAILS:

Free Shipping Is To A 'Commercial Business Location' In A 'Commercial Business District' (With Capabilities To Unload) Or To The Nearest Truck Terminal Served By Our Shippers In The 48 Continental US States.

Farm, Ranch, Rural, Residential Delivery is Available for An Additional $100.00.
