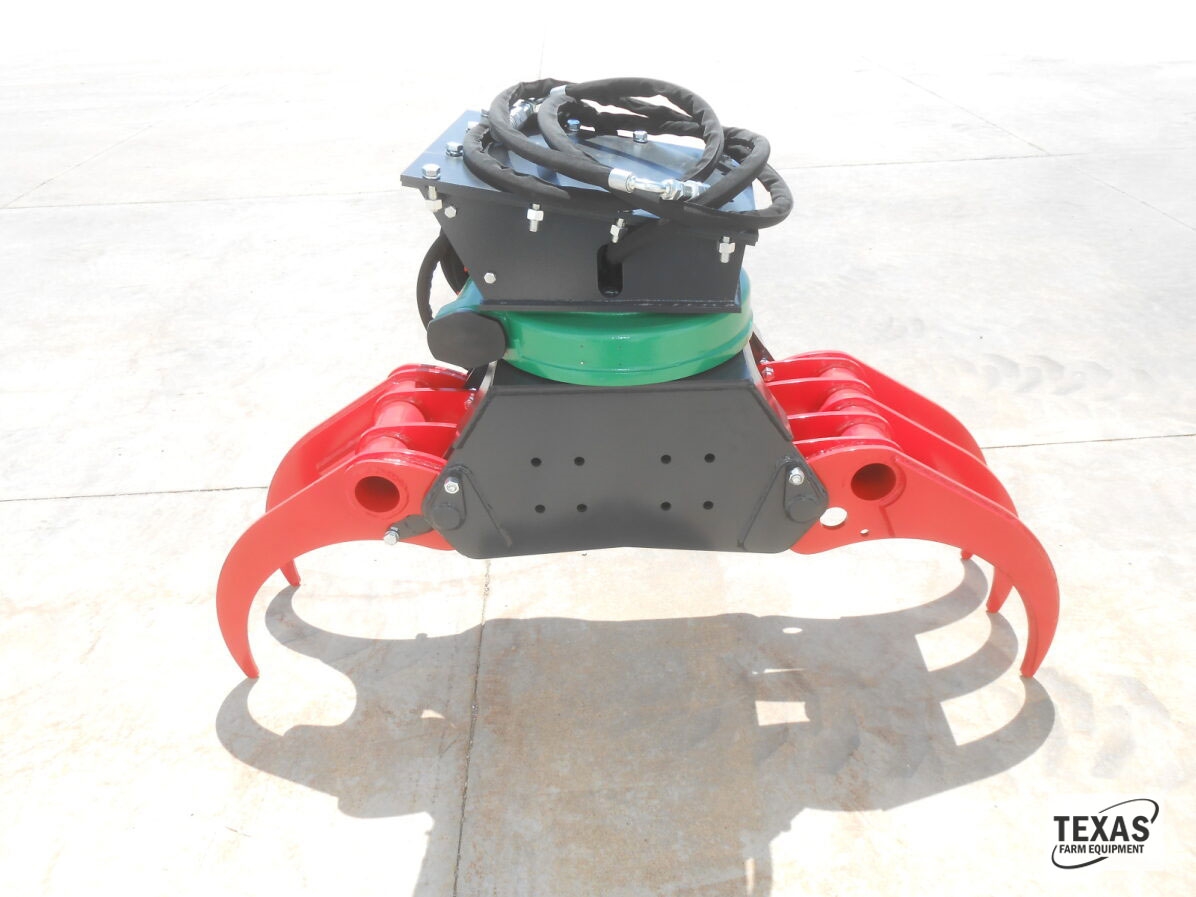

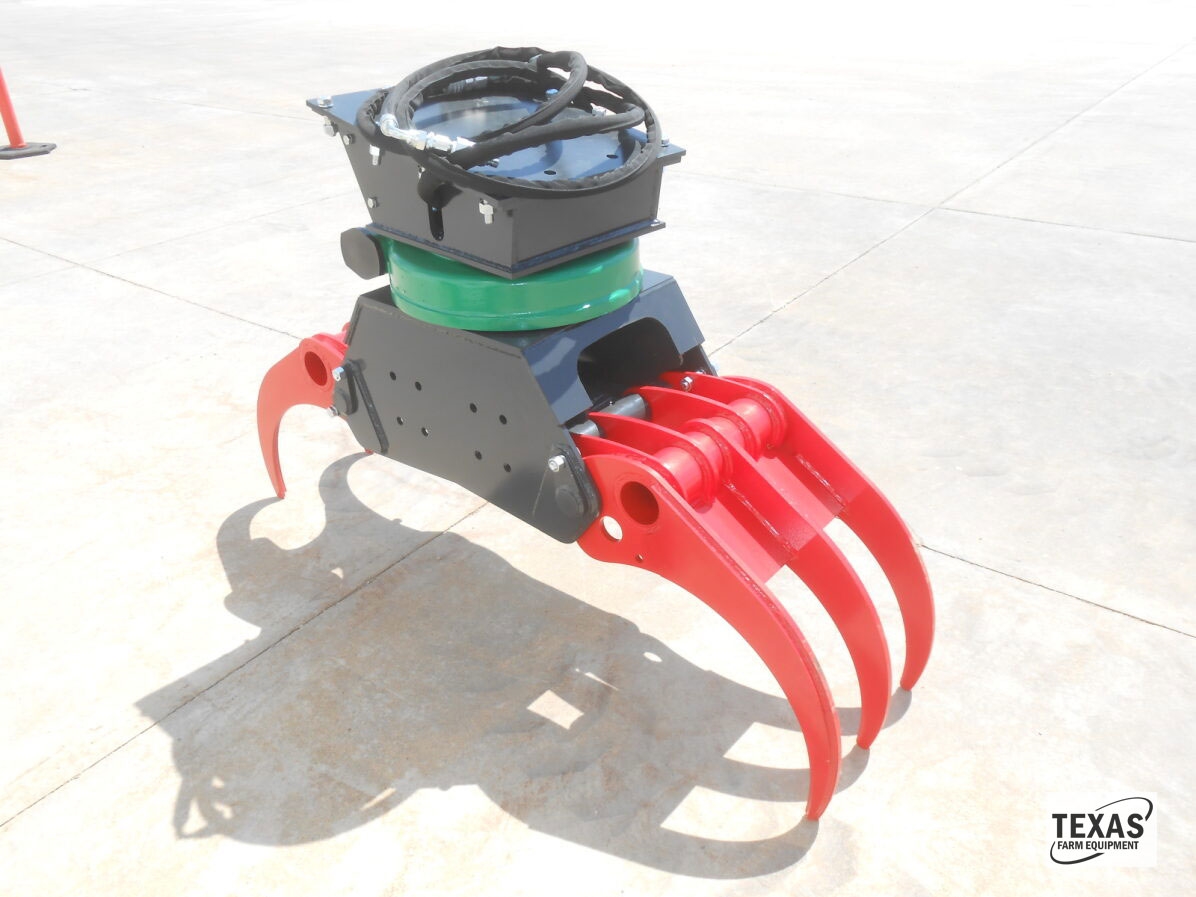

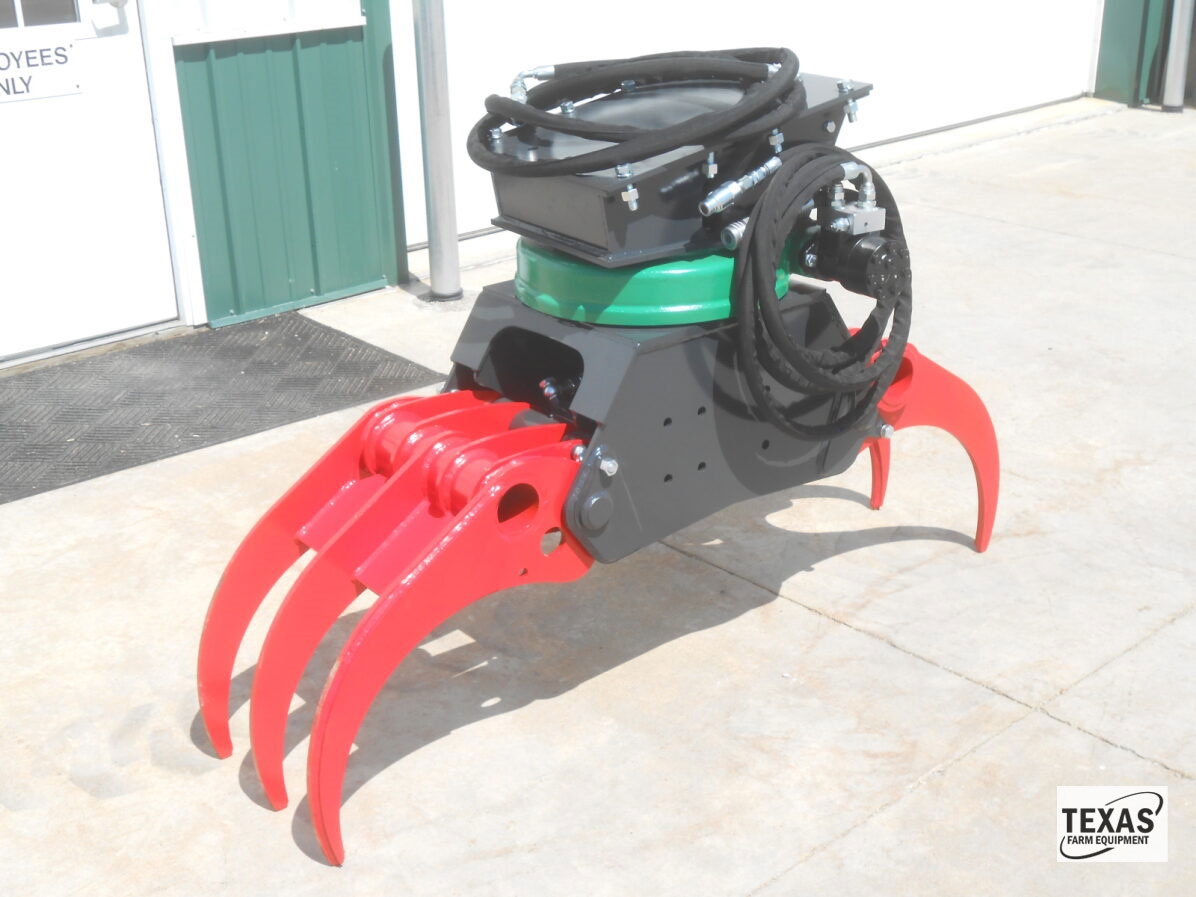

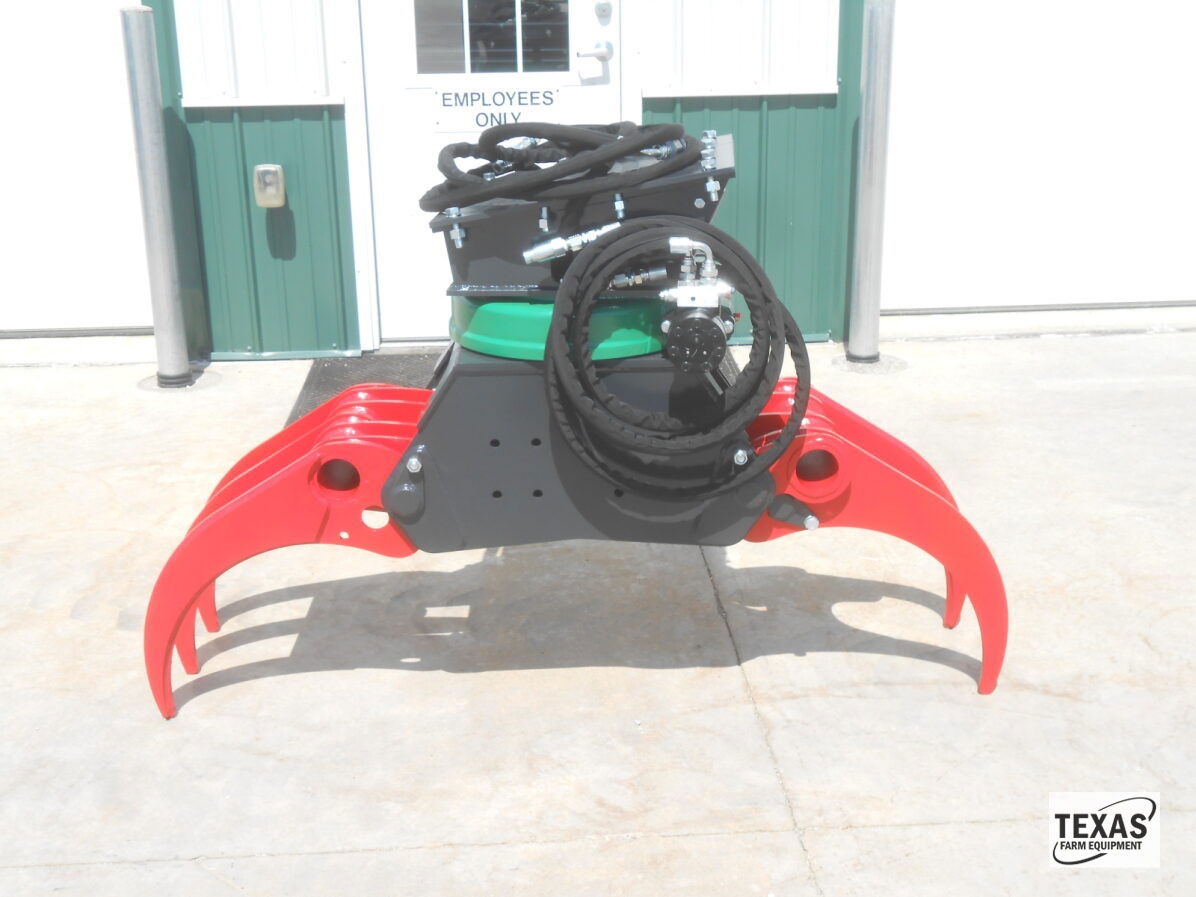

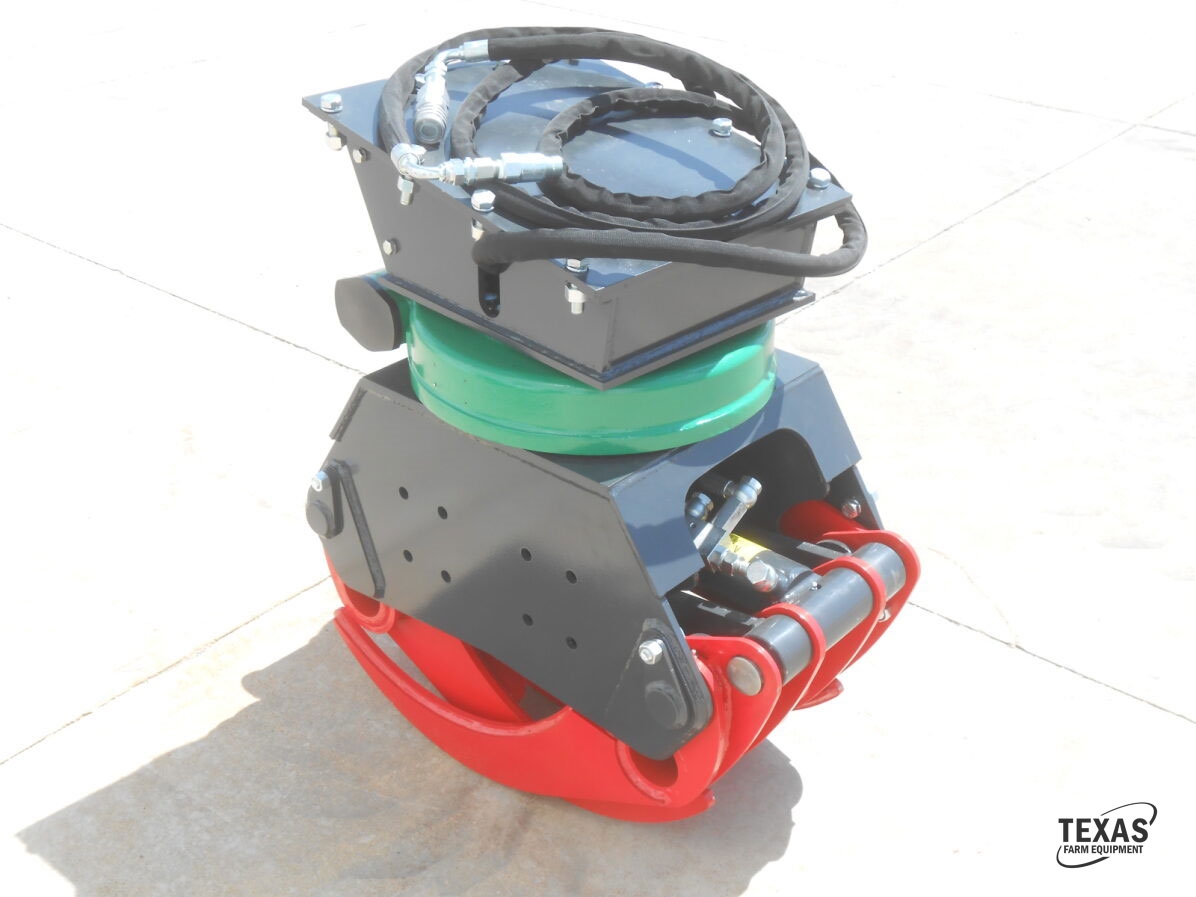

IFE 5T62, 62" 5-Tine Bypass Scrap, Stone, Log Grapple & Rigid Slewing Ring Rotator

IFE 5T62 SEVERE DUTY, Universal 62" Pinching Or Bypass 5-Tine Log & Stone Grapple with Rigid Slewing Ring Rotator: Suitable For Brush, Logs, Scrap, Stone, RR Ties, Waste - Most Anything!

• Slewing Ring Type Rigid Rotators Hold Their Last Position Without Creeping, Which Means They Will Provide A Sharp, Distinct 'Rotation Start' & 'Distinct Rotation' Stop (Braking), Particularly Compared To Vane Type Rotators Which Will Creep A Bit From Last Position, But Provide A Softer 'Rotation Start' & 'Softer Rotation Stop'.
• Slew Ring Type Rotators Are Intended For Extreme Loads, While Vane Type Rotators Can Be More Suitable For Longer Loads That Can Introduce More Inertia At Starting & Stopping!
• Rotator Turns 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
• Hydraulic Pressure Relief Valve Is Standard.

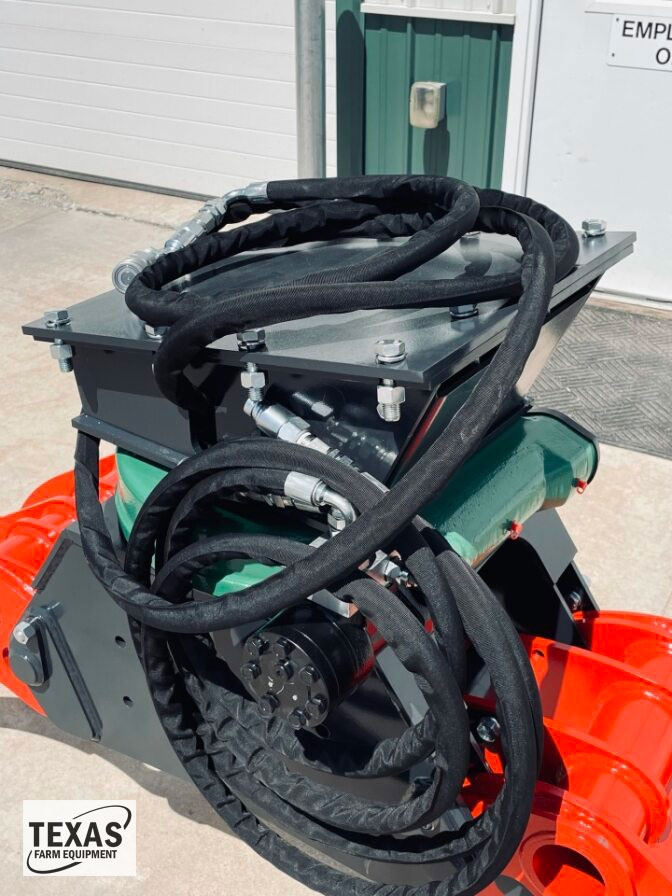

• This Listing is For The Grapple, Rotator, Hoses & Couplers As Shown!
• Specifications are based on manufacturer provided data & subject to change.

• Maximum Opening: 62".
• Minimum Opening: 5-1/2".
• Maximum Lift Capacity: 6,600lb's.
• Height (grade to top of Grapple) in Open Position: 28".
• Height (grade to top of Grapple) in Closed Position: 24".
• Add 12" For Height of Slew Ring Rotator.
• Overall Width of Claw: 17".
• Maximum Working Pressure: 3626psi.
• Grapple, Rotator, Hoses & Coupler Weight: 785lb's.
• Specifications are based on manufacturer provided data & subject to change.
