ACMA 250P, 8'-6" Premium Rotary Tiller & XW Packer Roller: 80-130HP, Quick Hitch Compatible

ACMA 250P Tiller & Hydraulic Packer Roller



Alternative Views:


Our Price: $17,999.00


Availability:: Usually Ships in 1 to 4 Weeks
Product Code: ACMA-250P
Qty:

DESCRIPTION: Click Here For A Video!


Heavy Duty Professional Premium Series, 8'-6" ACMA 250P, Cat 2, 3-Point, PTO Powered Rotary Tiller With XW (Extra Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!


Look No Further Than Texas Farm Equipment:
Excellent Quality Equipment, The Best Features, Best Single Pass Results & Best Prices!
Supported By A Full-Service Dealership!


GENERAL FEATURES:
  • ACMA Uses Heavy Duty Italian Made Gearboxes With Large Sumps For Cooler Operation & Longer Life!
  • Multi-Speed Gearbox Works Together With Tractors Ground Speed: Accommodating Older Tractors With Limited Low Speed Capabilities, Accommodating Newer Tractors With Lower Speed Controls, Both Accommodating Various Ground Conditions, Enabling 'Single Pass Efficiency' By Combining The Ideal Ground Speed With Ideal Desired 'Single Pass Results'!
  • 4) Following Gearbox 'Rotor Speed' Settings Are Available:
    • Standard Configuration @540RPM with 4-Speeds:
      • 155-174-195-218RPM's (Factory Set At Speed 3).
    • Optional Configuration @1000RPM with Single Speed of 287RPM's.
      • Upgrade Cost To 1000RPM Includes 1000RPM PTO Shaft.
    • Gearbox Gears Can Be Positioned For Various Speeds Without Emptying The Gearbox Oil By Tipping Tiller/Gearbox Back 90°.
  • Side Gear Drive System Is In An Oil Bath Gear Box.
  • Double Layer Deck Top, Each At 3/16" Thick!
  • Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (superior to skid shoes) & Also Provides Soil Conditioning! Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
  • Rotor 'Counter Flange Kit' Is Another Standard Feature, Minimizing Blade & Bolt Breakage In The Toughest & Rockiest Ground Conditions!
    • Rotor's 'End Flanges' Have One Straight Blade Each To Ensure Maximum Working Width & Minimizing Vegetation Wrapping On The Rotor Ends!
  • Multi-Position, Adjustable Rear Gates With Adjustable Built-In Shock Absorption:
    • Super Duty Rear Gates Are Durable Enough To Use For Finish Grading & Are Mechanically Linked To The 'Hydraulically Controlled Rear Roller' To Follow The 'On-The-Fly' Working Depth Positioning!
  • Wing Plates On Outside Corners Of Rear Gates Work To Level Any Ridges At The Outside Edges Of The Working Width!
  • Parking Stand & Rear Ridge Leveling Plates Are Standard.

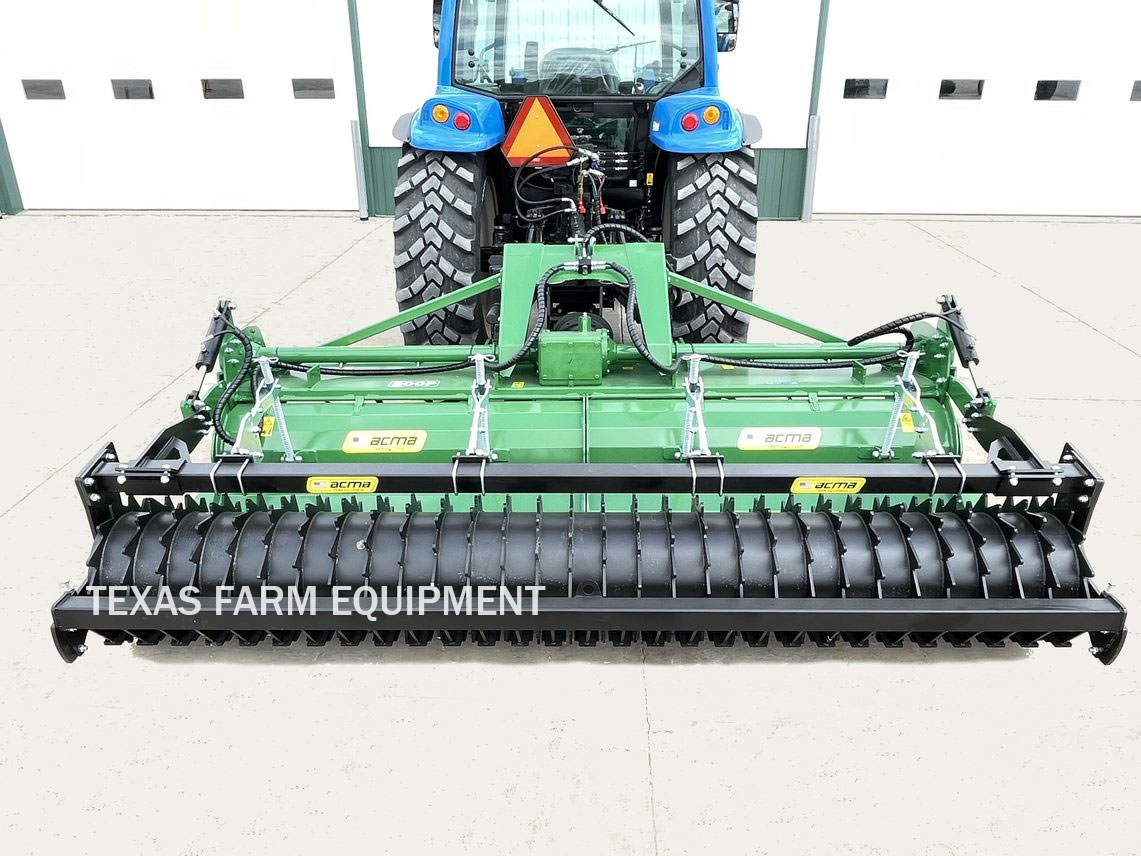

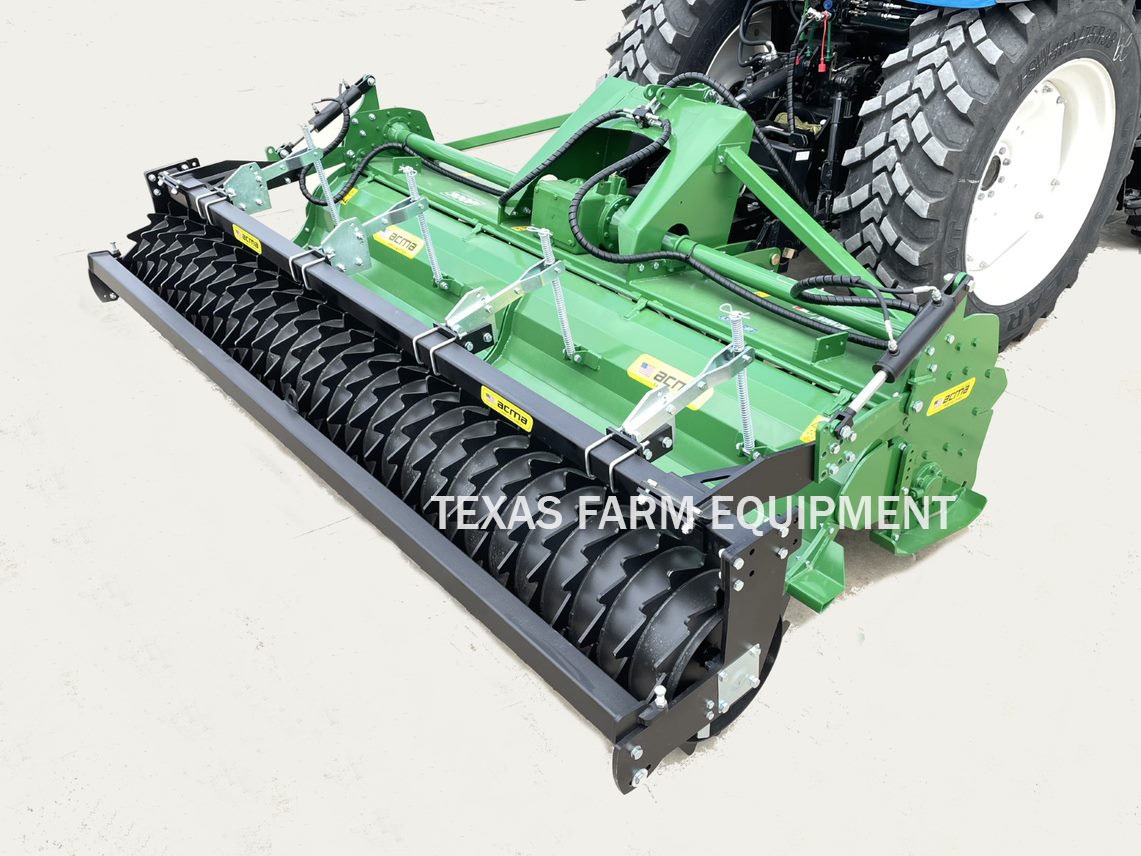

  • Sample Photos Are Of The 10' ACMA 300P Tiller, But This Listing Is For The 9' ACMA 250P!
  • Tiller Includes a 1-3/8", 6 Spline 540RPM, Shear Bolt Protected PTO Shaft!
  • Tiller Ships Fully Assembled & Ready To Use!
SPECIFICATIONS:
  • Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
  • 540RPM Gearbox Is Suitable For 80-130HP, PTO.
  • Overall 'Working Width' Is 8'-6".
  • Overall 'Machine Width' Is 9'-10".
  • Max. Working Depth Is 10"!
  • Rotor Has 11 Flanges & Total of 60+2 Straight Blades!
    • 6 Blades Per Flange on 9 Center Flanges.
    • 3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
    • Blade Tip To Blade Tip Diameter Is 21.25".
  • Rear Packer Roller Diameter: 18".
  • Tiller Weight: 3,150lb's (less PTO Shaft, Pallet/Crating, etc.).
  • Specifications are based on manufacturer provided data & subject to change.

Provide Us With Your Zip Code For A Quote Of Our Affordable, Nationwide Shipping Prices!

Texas Farm Equipment
Online Store of Iowa Farm Equipment
A FULL SERVICE DEALERSHIP
Providing Parts & Warranty Coverage Nationwide!
563-946-2122

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Everything we hoped it would do! September 20, 2023
Reviewer: Lynn from Pennsylvania
"Andrew, it's doing everything we hoped it would do. Little tougher in our limestone soil rather than your farmland, but we're making it work".
