OMARV FH1800, 6' Pull Type Haylage Harvester: 60-100HP Tractors

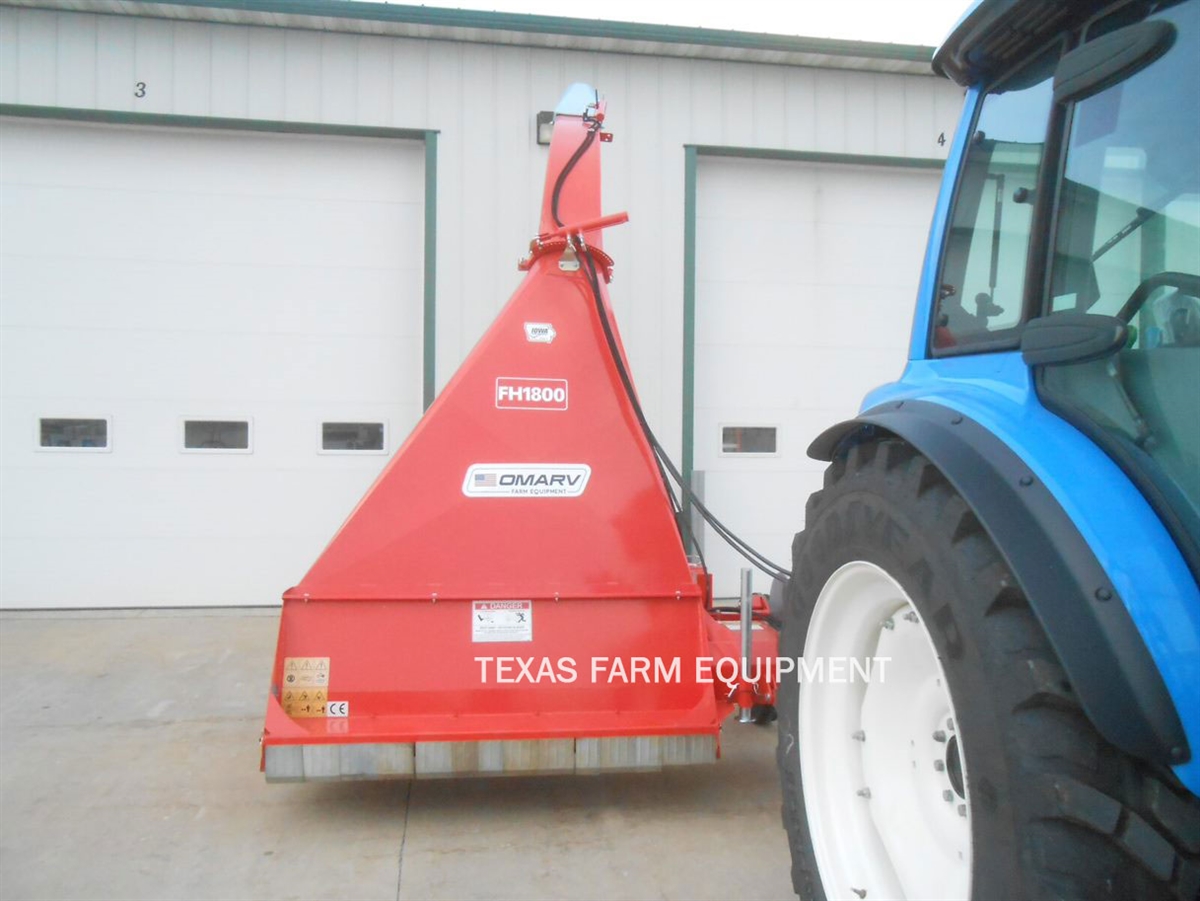

OMARV 6' Pull Type Orange Haylage Harvester

Alternative Views:


Our Price: $14,999.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: OMARV-HARVESTER-FH1800-ORG
Qty:

DESCRIPTION:


OMARV (Orange) Series 2T, Model FH1800, 6' Pull Type Haylage Harvester.


Look No Further Than Texas Farm Equipment:
Excellent Quality Equipment, The Best Features, Best Single Pass Results & Best Prices!
Supported By A Full-Service Dealership!


GENERAL FEATURES:
  • This OMARV Haylage Harvester Has a 6" Dia. Heavy Duty Rotor With 27 Large, Swinging/Hanging, Hardened Steel Hammer Type Blades:
    • OMARV Harvesters Always Have The Highest Population of Blades To Provide The Best Possible Cut & Reduce The Burden On Your Tractor!
    • 23" Blade Tip To Blade Tip Diameter!
    • Blades Are Cupped For Maximum Blowing Propulsion!
    • These Substantial Blades Can Be Sharpened Multiple Times & Typically Have A Very Long Life!
    • Swinging/Hanging Blades Provide Protection Against Fixed Objects Like Rocks, Stumps, etc!
    • Blades Cut Against Two Counter Blades: One Large Primary (1"x4"x3"x13/16"Thick) Modified 'C' Channel Counter Blade At Lower Front & One 3"x1/8" At Top Rear For Final Reduction.
    • Primary Counter Blade Has 2" Of Gap Adjustment (Edge of Channel to Edge of Blades) To Control Clipping Size & Demand Back To Your Tractor.
    • Primary Counter Blade Is Factory Set At Mid Cutting Range, Providing 1" Additional Closing Or Opening!
    • Both Counter Blades Are Bolt-On For Ease Of Adjustment & Replacement!
  • Discharge Neck Rotates Hydraulically For 'On-The-Fly' Positioning:
    • Rotates From Rear Center 25° Clockwise.
    • Set Towards The Rear To Fill A Forage Wagon, Barge Box, Etc.
    • Swing 25° Rear Center To Right To Disperse Cover Crop, Unharvested Produce, etc!
  • Deflector Is Also Hydraulically Adjustable For 'On-The-Fly' Positioning!
  • OMARV Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
    • First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
      • The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
    • Second, Smooth Shut Down:
      • The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the PTO Brake!
  • Clevis Style Pinned Connection At Rear For Trailer Tongue Connection.
  • Some Sample Images Show Tractor For Reference Only - Tractor Is Not Included.
  • Mower Includes 540RPM PTO Shaft!
SPECIFICATIONS:
  • Suitable for 60-100HP Tractors.
  • Clevis Style Pinned Drawbar Connection To Tractor.
  • Working Width: 72".
  • Overall Width: 9'-1".
  • Overall Depth: 70" & 34" Of Drawbar.
  • Overall Height: 12'-2".
  • Cutting Height Can Be Set From 2"-12"!
  • Electronically Balanced Rotor Has 27 Large Hardened Steel Hammer Blades:
    • Blade Dimensions: 5-1/2" Tall x 3-1/8" Wide x 5/16" Thick!
    • Blade Tip To Blade Tip Diameter: 23".
    • Rotor & Hardened Hammer Blades Rated To Cut Up To 1.5" Diameter Material.
    • Rotor Diameter: 6".
  • Discharge Spout Dimension (Pre-Deflector): 7" x 10".
  • Tires Are: 5.50 x 16".
  • Weight: 1,835lb's (Less PTO Shaft, Pallet/Crating, etc.).
  • Specifications are based on manufacturer provided data & subject to change.
