Heavy Duty Professional Series, Valentini U2500, 8'-6" Cat 2, 3-Point Mounted, PTO Powered Rotary Tiller & Packer Roller w/Hydraulic Adjustment For 'On-The-Fly' Working Depth Adjustment!
Texas Farm Equipment:
Excellent Quality Equipment, The Best Features, Best Single Pass Results & Best Prices!
Supported By A Full-Service Dealership!
GENERAL FEATURES:
-
Valentini Uses Italian Made Gearboxes with the Largest Sumps for Cooler Operation & Longer Life!
-
Side Gear Drive System is in an Oil Bath Gear Box.
-
Dual Rotor Scraper Blades (on the Inside Rotor Ends) Prevent Material from Wrapping to Protect Rotor Seals.
-
Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
-
Hydraulically Adjusted Packer Roller Provides Excellent Means of 'On-The-Fly' Working Depth Control (superior to Skid Shoes) & Also Provides Soil Conditioning!
-
Hydraulic Adjust Kit Includes:
-
Flow Control Valve & Premium Hydraulic Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
-

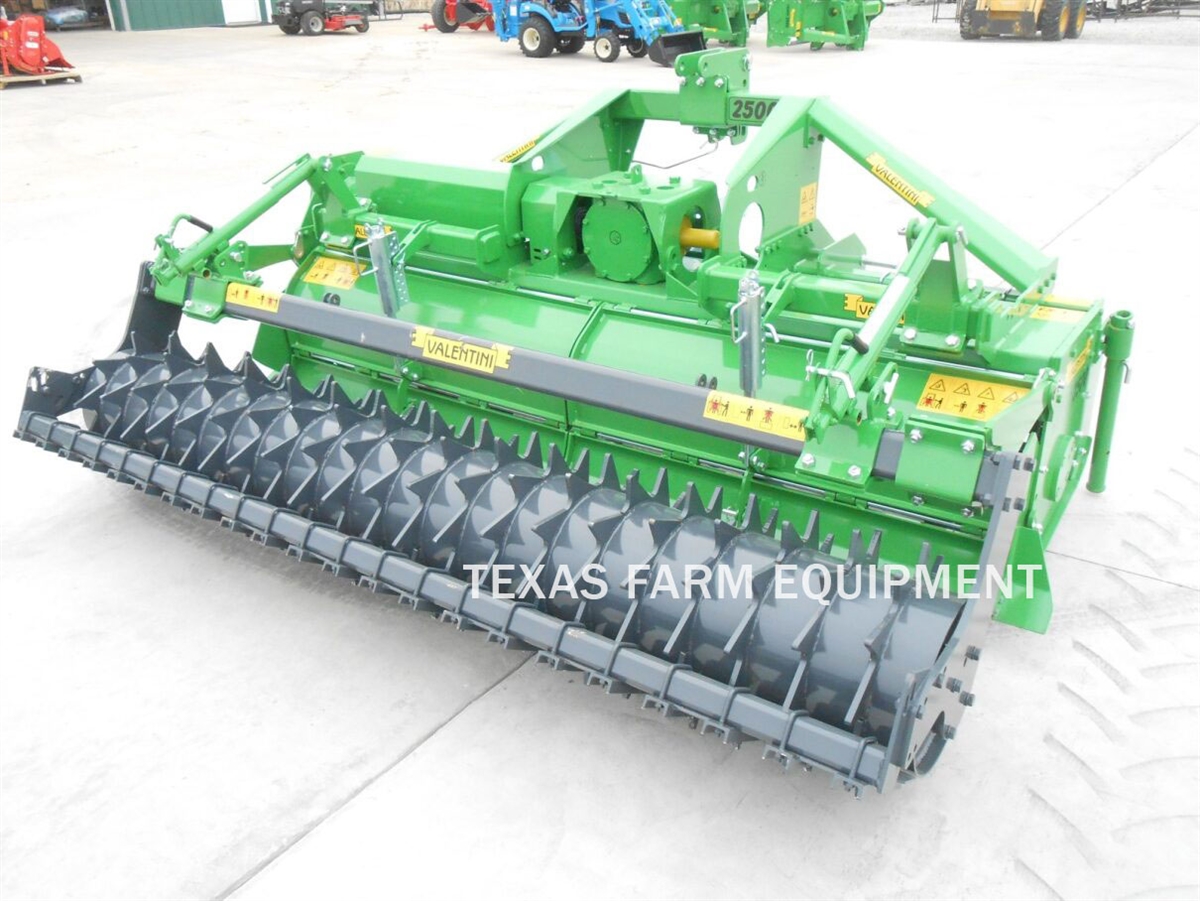

Roller Includes Mud Scraper As Shown.
-
Tiller Includes a 1-3/8", 21 Spline 1000RPM, Cam Clutch Protected PTO Shaft!
-
Large Thousand is available (for the Tractor side) separately.
-
For Severe Duty Service, the Gearbox Output Shaft & PTO Shafts are 1-3/4", 20 Spline 1000RPM.
-
It doesn't get any better than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
-
No maintenance, automatic clearing & resetting after locked rotor conditions.
-
Sample Video is of the U3000 Tiller, but this Listing is for the U2500 Tiller w/Roller.
SPECIFICATIONS:
-
Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
-
1000RPM Gearbox is Suitable for 80 to 170HP, PTO.
-
Tills a 8'-6" Wide Path.
-
Overall Working Width is 9'-2".
-
Working Depth is 11"!
-

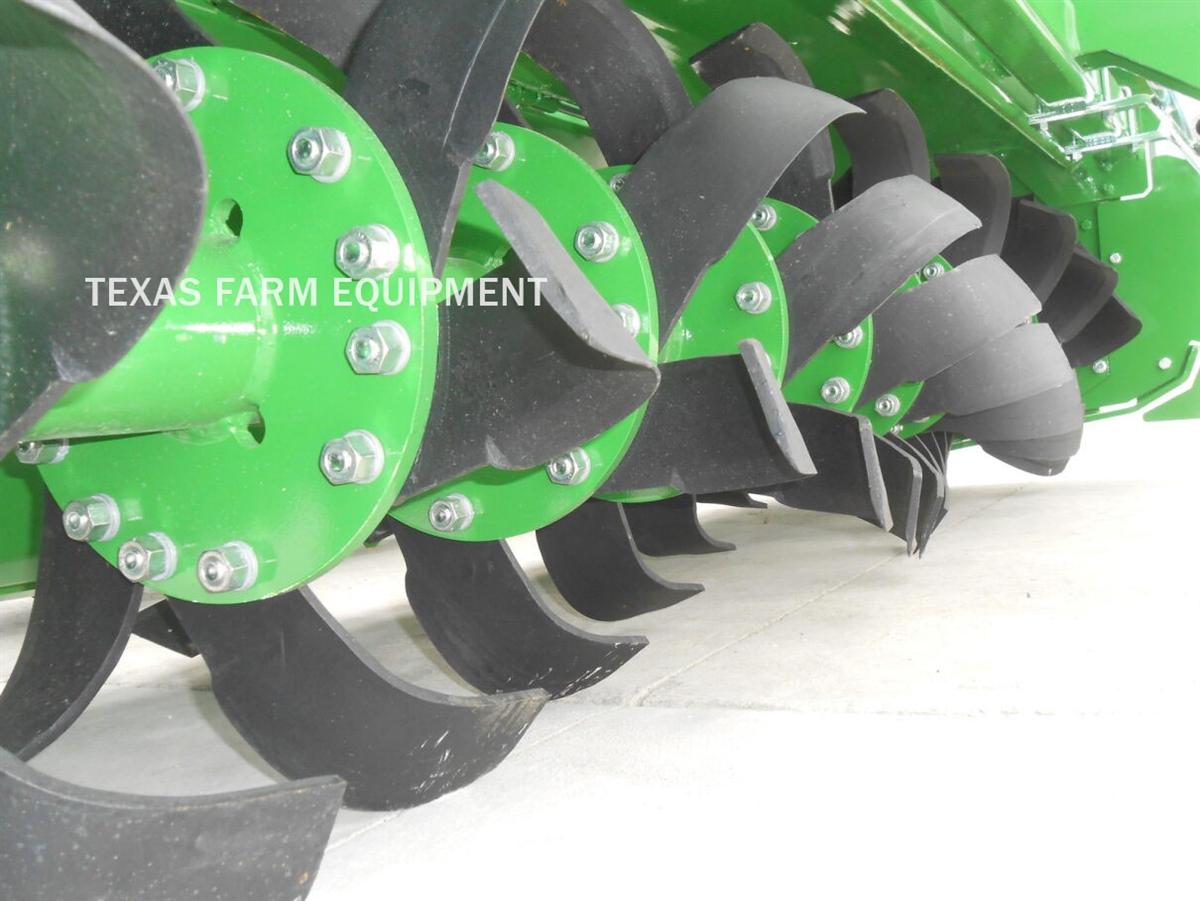

Rotor Has 11 Flanges For a Total of 60 Blades.
-
6 Blades per Flange on 9 Center Flanges.
-
3 Blades per Flange on 2 Outside Flanges.
-
Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
-
Tiller Weight: 2,356lb's (less PTO Shaft, Pallet/Crating, etc.).
-
Packer Roller Weight: 933lb's (less Pallet/Crating, etc.).
-
Packer Roller Drum is 14" Diameter & Overall Diameter is 20".
-
Specifications are based on manufacturer provided data & subject to change.
