Badalini Z6R30-7 Inter-Row Tiller & Cultivator: 6-Crop Rows, 7-Heads: Mechanical, Organic Weed Termination

Heavy Duty, Quick Hitch Compatible Professional Series: Badalini Z6R30-7: 6 Crop Rows, 7-Head Inter-Row Tiller.

• 7) Tiller Heads!
• Varied Gang/Group Configurations Available!
• Varied Row & Gang/Group Spacing Available!
• Badalini Inter-Row Tillers Are Available To List From 1 to 20 Row Units!
• Optional Working/Tilling Widths From 7.5" to 63" Available!
• Gangable Tilling Blades For Varied Working Widths Enable One Machine To Be Suitable For Many Varied Applications!
• Components Attached To Tool Bar Have Infinite Horizontal Adjustment:
• 3-Point Hitch 'or' Tilling Heads Slide On Toolbar To Accommodate Varied Spacing Configurations!
• Front Gage Wheels & Ripper Shanks Are Standard.
• Optional Rear Ridging Attachments (shown in some photos) Are Available Separately:
• Ridger Moves Soil Between Plants For Weed Suppression & Stalk Support.
• Optional Fertilizer Boxes (shown in some photos) Are Available Separately:
• Use The Optional Fertilizer Box For Efficient, Row Specific Fertilizer Application!
• Optional Fertilizer Boxes Available in Two Capacities: 660 or 1980lb's:
• Fert. Boxes Are Gravity Fed with Hydraulic Agitator.

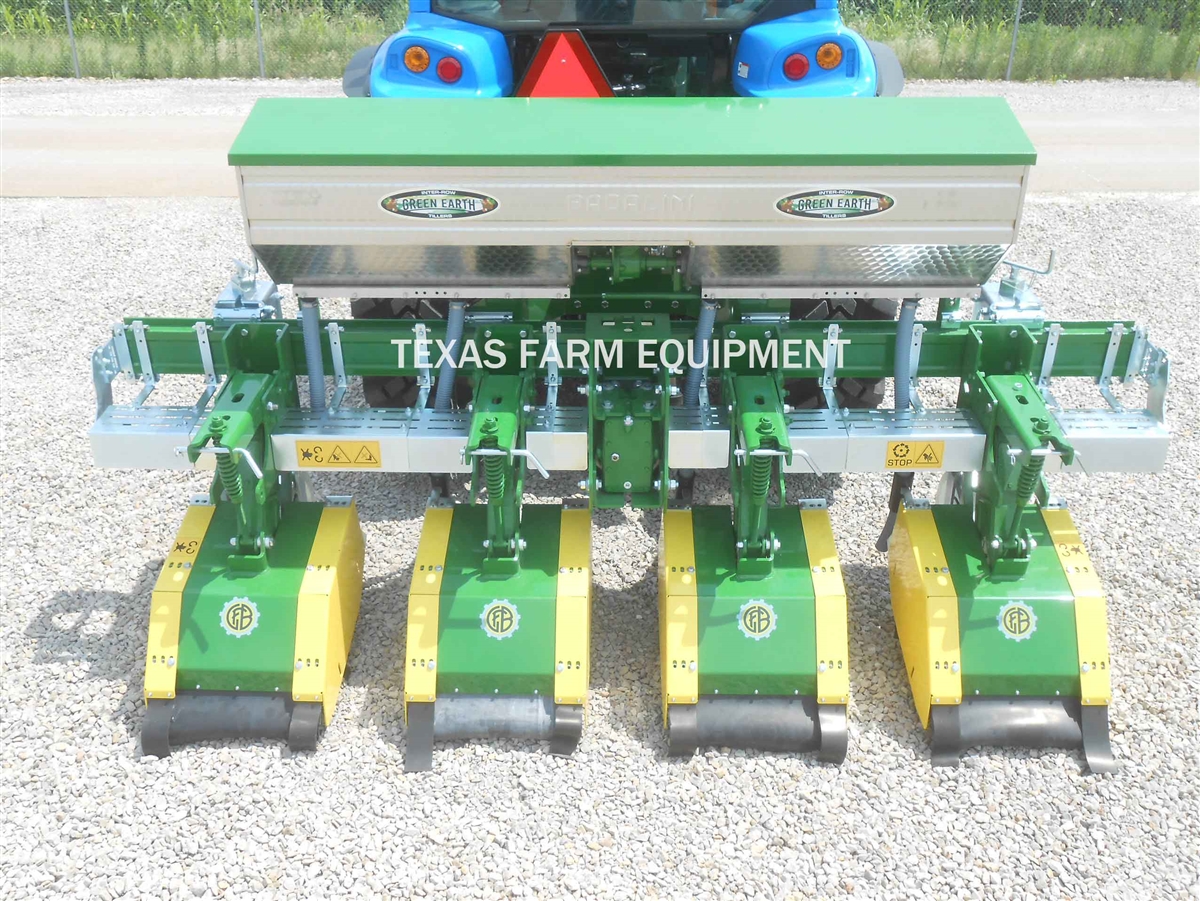

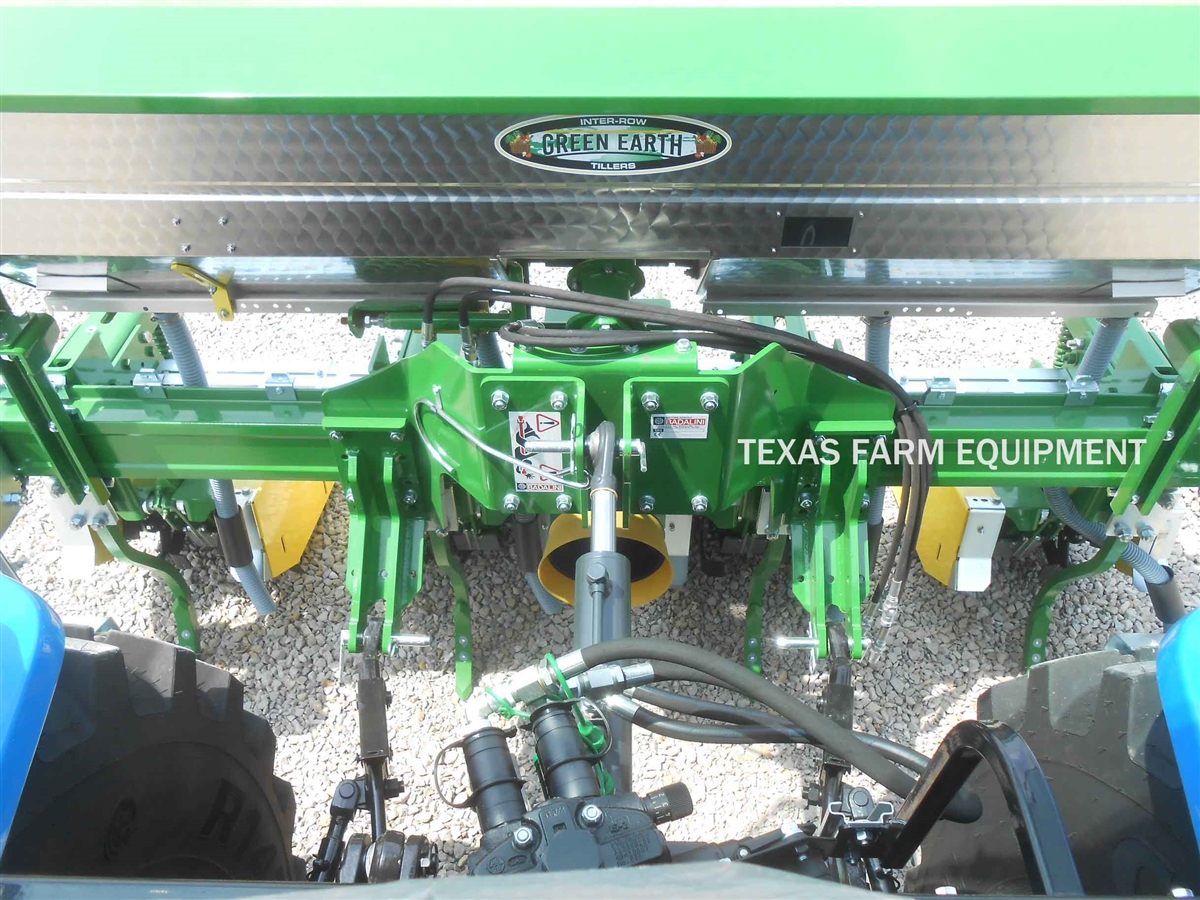

• Sample Photos & Video Show a 4-Head Unit, But This Listing is For a 7-Head Unit As Stated Previously.
• 540RPM Shear Bolt Protected PTO Shaft.

• Inter-Row Tiller:
• 540RPM Gearbox is Suitable for 40 to 150HP Tractors.
• Clevis Style, Cat 2/3N/3 Quick Hitch Compatible 3-Point!
• 26" Vertical 'Crop' Toolbar Clearance.
• 15'-6" Wide Toolbar.
• 7) Tilling Heads:
• Overall Hood Width Dimensions (Adjustable): 20.5", 24.5" & 26.5".
• Overall Working Width Of Each Head (Adjustable): 20" to 26".
• Row Spacings:
• 30" to 36".
• Weight: 2865lb's.
• Weight Of 'Optional' Fertilizer Boxes:
• 660lb Cap, 8.5Bu is 290lb's (empty).
• 1,980lb Cap, 25.5Bu is 420lb's (empty).
• Specifications are based on manufacturer provided data & subject to change.
